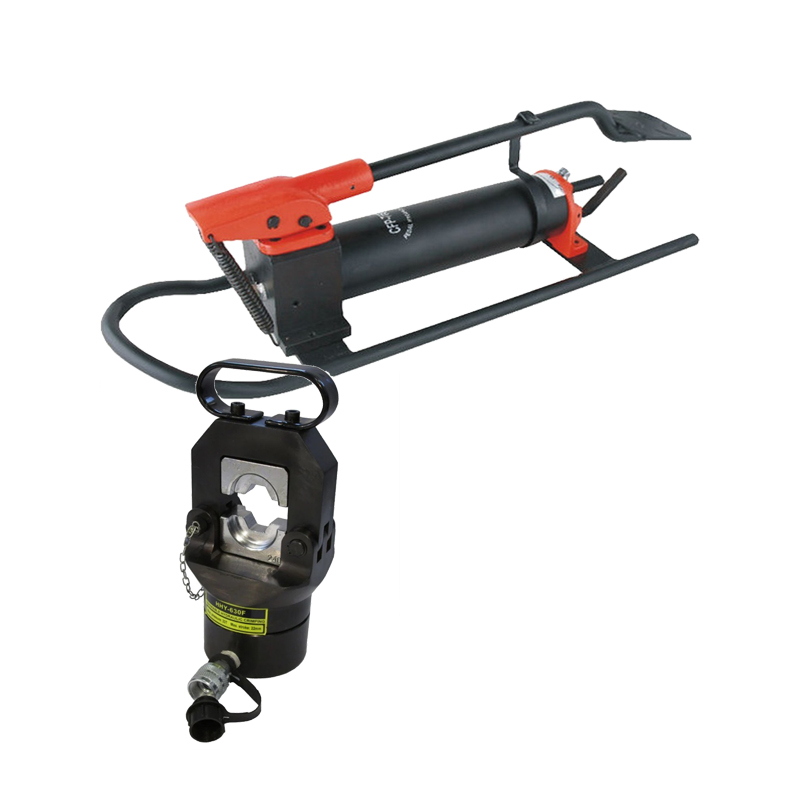

CO-630A Feature
• Opening head design
• Single acting compression head
• Hexagon crimping type for cable lug，wire clamp, pipe with hexagon dies or other dies for crimper
• Suitable for underground cable crimping.
• To be worked with foot pump, hand pump or electric driven hydraulic pump.
• The oil pipe coupler fitted with PT 3/8” thread.
• Standard dies, include 150 185 240 300 400 500 630 mm²
• Dies could be OEM
• Metal plus wooden case package is for well tool protection
Parameters
| Model | CO-630A |
|---|---|
| Terminal Type | Cable Lug or Connector |
| Crimping Capacity | 150 185 240 300 400 500 630 mm² |
| Output | 35 T |
| Length | 360 mm |
| Weight | 16.3 kg |
CFP-800 Feature
• Single-Acting foot pump
• With pressure release lever
• Wide bottom frame
• High pressure Oil pipe supplied
• Foot operated style which It is not
necessary to bend or crouch down during operation, especially good for
tall people . Quick couple kept fast connection with compatible tools.
• Double Speed Unit: For quick operation.
Allow quick oil delivery under no load condition (12.26cc/stroke), and
then bulid sufficient working pressure under lost condition (20-700Bar)
• Safety Valve: automatically relief pressure when rated pressure is reached, protect hydraulic system from over pressure
• Packed with Steel Case Package for easy carrying and protect pumps well during shipping
Parameters
| Model | CFP-800 |
|---|---|
| Rated Pressure | 700 Bar |
| Oil Reservoir | 1200CC |
| Oil Delivery Speed |
Low Pressure 12.26cc/stroke High Pressure 2.26cc/stroke |
| Working Pressure |
Low pressure 0-20bar High Pressure: 20-700bar |
| Size | 610*140*170mm |
| Weight | 10.1 kg |
  |
